The following options are advanced options available only into the HYRIS bCUBE^TM local settings page, is not mandatory to set these parameters if are not required by your network.

DHCP (Dynamic Host Configuration Protocol) is selected by default, in this case the HYRIS bCUBE™ will expect a DHCP to assign a dynamic IP to the device.

Operative Steps

• Select the desired HYRIS bCUBE™ from the Devices menu;

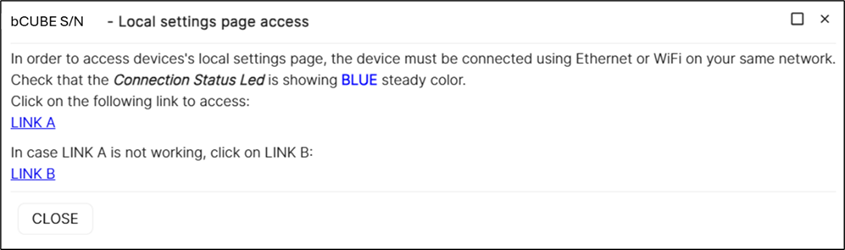

• Click on the HYRIS bCUBE™ Local Settings Page ( ) and select LINK A or LINK B;

• Click on the Network section;

In this section, the user can manage the HYRIS bCUBE^TM saved WiFi. Following actions are allowed from this section:

•

  • Manage the IP Address settings: switch from dynamic IP (DHCP) to static IP (Manual);

  • Manage and add Saved WiFi;

  • See DNS and Interfaces status;

In case DHCP is selected in relation to a determined interface (Ethernet or Wi-Fi connection), the HYRIS bCUBE™ will expect a DHCP to assign a dynamic IP to the device (default).

If the Company Network is not provided with DHCP, the static IP can be manually set clicking on the Manual option and filling the information required; then click on ‘’Save’’ button: the reboot of the HYRIS bCUBE™ is requested after saving the settings.
